Compact and lightweight, crimping range from 0.08-6.0mm2 (AWG 28-10)

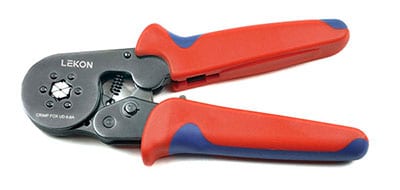

WXC8 6-6 Self adjustable crimping tool for cable end sleeves
Share
Features
• It is applicable for tubular non insulated terminal and pre-insulated terminal on non-welding
electrical connection.
• The required pressing force must be reached before the brake unit automatically release
the jaw of the pliers.
• High quality crimping standard ensured during consistant crimping.
• Perfect gripping position, compact structure, lightweight and ergonomically designed handle,
it saves much operator’s power.
• Two type of finish: burnished and chromed.
• Self-adjust to the ferrule size.
• Specially hardened steel.
Specifications
Compact crimper for end sleeves (ferrules) with two great advantages for the user:
– Automatic self-adjustment to the end sleeve (ferrule) used: this allows the user to work with
less strain and enables secure, reliable and quick crimping.
– Extensive range of applications: square crimping 0.08 to 10.0 mm², hexagon crimping 0.08 to 6.0mm²
Range of Application: For cable end sleeve
| Type | Capacity | AWG | Length | Weight |
| WXC8 6-6 | 0.08-6.0mm2 | 24-10 AWG | 175mm | 0.36kg |
Images & Videos

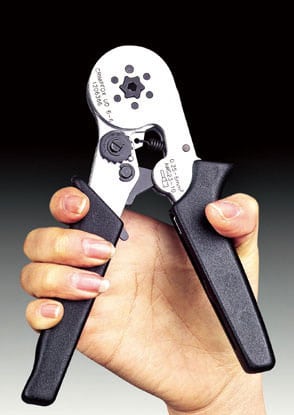

WXC8 series Self-adjustable Crimping Tools Technical Details:

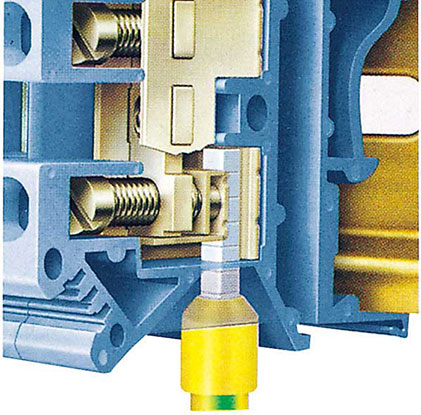

1. For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4
2. Self-adjusting adaptation to the end sleeve (ferrule) size: no wrong crimps caused by using the wrong die
3. Fits all twin- ferrules within the application range
4. Lateral access of the end sleeves (ferrules) into the tool
5. Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
6. The tools are set precisely before shipment
7. Toggle action leverage to reduce operator effort
8. Conpact, lightweight make the tool easy to use
9. Chrome vanadium steel of special quality, quenching process.
10. Hexagonal crimping for optimum positioning in confined areas
