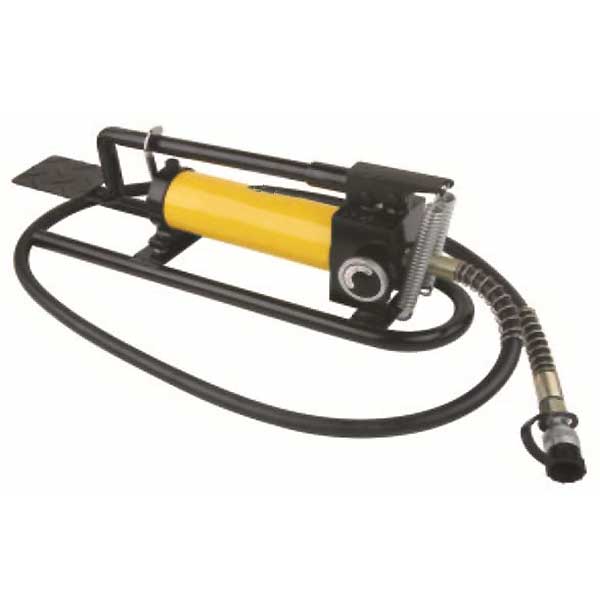

TFP-800 hydraulic foot pumps drive crimping head cutting head punch head

>>TFP-800 hydraulic foot pumps drive crimping head cutting head punch head

TFP-800 hydraulic foot pumps drive crimping head cutting head punch head

Big capacity of oil, operated with big cylinders..

Print



Inquire Now
Category:
Share

Features

     •     Big capacity of oil, operated with big cylinders.

     •     Hydraulic hand operated pump to drive crimping heads, cutting heads and punching heads,

           accessories including 2M high pressure hose and a coupler plug.

     •     PT3/8″ screw thread, the oil number is Shell Tellus T 15, which must be changed every half year.

Specifications

Model: TFP-800 hydraulic foot pumps

 Type Foot Pump
 Max Output Pressure Low pressure   2MPa
 High Pressure   70MPa
 Oil Output Low pressure  13cc
 High pressure  2.3cc
 Oil Capacity 700cc
 Piston Direction Double
 Weight Approx. 9kg
 Measurement(LxWxH) 450x150x200mm
