Compact and lightweight crimping tool, handle color can be customized.
SN series mini hand crimping tool European style
Share
Features
• The components of the ratchet crimping tool are made of special steel.
• Ergonomic design, saves 50% energy when crimping.
• Precise crimping die sets and integral lock with self releasing mechanism
ensure high-quality crimping effect after crimping continously.
• Handle colour can be customized.
• Light and compact, 8″ inches.
Specifications
SN series crimping tool
Length: 190mm
Weight: 0.37kg
| Type | Application | Crimping capacity | AWG | Connectors |
| SN-02C | Insulated terminals | 0.25-2.5mm² | 24-14 |  |
| SN-01C | Insulated terminals | 0.08-0.25, 0.25-0.5, 0.75-1.5mm² | 28-16 | |
| SN-0725 | Insulated terminals | 0.5-2.5mm² | 22-14 | |
| SN-02WF2C | Insulated and non-insulated ferrules and insulated terminals | 0.5-2.5mm² | 22-14 |  |
| SN-02B | Non-insulated tabs and receptacles | 0.5-2.5mm² | 22-14 |  |
| SN-11011 | Non-insulated tabs and receptacles | 0.5-2.5mm² | 22-14 | |
| SNA-01BM | D-SUB terminals | 0.08-0.5mm² | 28-22 |  |
| SNA-28B | Non-insulated tabs and receptacles | 0.1-1mm² | 28-18 |  |
| SN-48B | Non-insulated tabs and receptacles | 0.14-1.5mm² | 26-16 |  |
| SN-0325 | Non-insulated terminals | 0.75-2.5mm² | 20-14 |  |
| SN-02 | Non-insulated terminals | 0.25-2.5mm² | 24-14 | |
| SN-02WF | Insulated and non-insulated ferrules | 0.14-2.5mm² | 28-14 |  |
| SN-16WF | Insulated and non-insulated ferrules | 6-16mm² | 10-6 | |
| SN-05WF | Insulated and non-insulated ferrules | 0.5-6mm² | 22-10 | |
| SN-06WF | Insulated and non-insulated ferrules | 0.25-6mm² | 24-10 | |
| SN-06WFL | Insulated and non-insulated ferrules | 0.25-6mm² | 24-10 | |
Images & Videos
SN-02WF2C Mini Crimping Tool for cable end-sleeves and insulated terminals
Range of Application: For cable end-sleeves and insulated terminals
| Capacity | AWG | Length | Weight |
| 0.5-2.5mm2 | 22-14AWG | 190mm | 0.37kg |
SN-06WF Mini European Style Crimping Tool for Ferrules
Range of Application: For Ferrules
| Capacity | AWG | Length | Weight |
| 0.25-6.0mm2 | 24-10AWG | 190mm | 0.37kg |
SN-0325 Mini European Style Crimping Tool for Non-insulated Cable Links
Range of Application: For Non-insulated cable links
| Capacity | AWG | Length | Weight |
| 0.75-2.5mm2 | 20-14AWG | 190mm | 0.37kg |
SN-16WF Mini European Style Crimping Tool for Ferrules
Range of Application: For Ferrules
| Capacity | AWG | Length | Weight |
| 6-16mm2 | 10-6AWG | 190mm | 0.4kg |
SN-0725 Mini European Style Crimping tool for Insulated Terminals
Range of Application: For insulated terminals
| Capacity | AWG | Length | Weight |
| 0.5-2.5mm2 | 22-14AWG | 190mm | 0.37kg |
SN-11011 Mini European Style Crimping Tool for Non-insulated Cable Links
Range of Application: For non-insulated cable links
| Capacity | AWG | Length | Weight |
| 0.5-2.5mm2 | 22-14AWG | 190mm | 0.37kg |
SN-48B Mini European Style Crimping Tool for Non-insulated Tabs and Receptacles
Range of Application: For non-insulated tabs and receptacles (tab2.8mm2; 4.8mm2)
| Capacity | AWG | Length | Weight |
| 0.14-1.5mm2 | 26-16AWG | 190mm | 0.37kg |

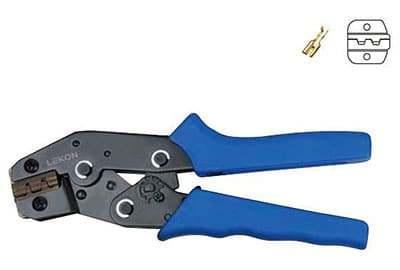

SN-02B Mini European Style Crimping Tool for Non-insulated Tabs and Receptacles
Range of Application: For non-insulated tabs and receptacles
| Capacity | AWG | Length | Weight |
| 0.5-2.5mm2 | 22-14AWG | 190mm | 0.37kg |
