LY series ratchet crimping tool (European style)

LY series ratchet crimping plier european style 3

LY series ratchet crimping tool (European style)

For wire ferrules, receptacles, insulated and non insulated cable links and coaxial cables.

Inquire Now

Category: Crimping Tools

Features

• Featuring an adjustable crimping compression mechanism and an up/down ratchet lock.

• High carbon steel jaws, handles with a black oxide finish and ABS grip sleeves.

make this tool easy and comfortable to use.

• The crimper is made of special steel.

• Precise die sets module and the ratchet lock (self-releasing mechanism) design.

• Lever principle ensures high torque transmission, more accurate crimp.

• Two-color plastic handle available, ergonomic design ensures easy and comfortable to use.

Specifications

LY series ratchet crimping tool

Length: 220mm

Weight: 0.49kg

Type	Application	Crimping capacity	AWG	Connectors
LY-30J	Insulated terminals	0.5-1.5, 1.1-2.5, 2.6-6mm²	20-10
LY-40J	Insulated terminals	0.25-0.5, 0.5-1.5, 1.5-2.5, 4-6mm²	23-10
LY-05D	Turned contacts	0.14-1, 1.5, 2.5, 4mm²	25-11
LY-03C	Insulated terminals	0.5-1.5, 1.5-2.5, 4-6mm²	20-10
LY-07FL	Flag female receptacles insulated terminals	1.5-2.5mm²	22-14
LY-08FL	Flag female receptacles insulated terminals	4.8-6.3mm²	20-13
LY-03BC	Non-insulated tabs and receptacles	0.5-6mm²	22-10
LY-10	Non-insulated terminals	1-16mm²	20-5
LY-101	Non-insulated terminals	0.5-1, 1.5-2.5, 4-6, 10mm²	20-7
LY-1016	Non-insulated terminals	1-16mm²	20-5
LY-06WF2C	Insulated, non-insulated ferrules, insulated terminals	0.5-2.5mm²	20-12
LY-04WF	Insulated and non-insulated ferrules	1-6mm²	20-10
LY-04WFL	Insulated and non-insulated ferrules	0.5, 0.75, 1, 1.5, 2.5, 4mm²	20-12
LY-26TW	Insulated and non-insulated ferrules	2*(0.5, 0.75, 1, 1.5, 2.5, 4, 6)mm²	2*(20-10)
LY-16GF	Insulated and non-insulated ferrules	4, 6, 10, 16mm²	12-6
LY-625WFL	Insulated and non-insulated ferrules	6, 10, 16, 25mm²	10-4
LY-35WF	Insulated and non-insulated ferrules	10, 15, 25, 35mm²	8-2
LY-02H	RG55, 58, 59, 62, 140, 141, 142, 223, 303,400, FIBER OPTIC, BELDEN 8279	6.5, 5.4, 1.72mm²
LY-02H2	Coaxial cable	4.5, 4, 3mm²
LY-05H	RG55, 58, 59, 62, 5, 6, 21, 140, 141, 142, 143, 210, 212, 222, 223, 303, 304, 400,BELDEN 8279, 8281, 9231, 9141	8.1, 6.5, 5.4, 2.6, 1.72mm²
LY-457	4C, 5C, 7C CABLE	11, 8.2, 5.4mm²

Images & Videos

LY-30J Ratchet Crimping Tool for Insulated Terminals

Range of Application: For Insulated Terminals

Type	Capacity	AWG	Length	Weight
LY-30J	0.5-6mm2	20-10AWG	220mm	0.48kg

LY-03C Ratchet Crimping Tool for Insulated Terminals

Range of Application: For Insulated Terminals

Type	Capacity	AWG	Length	Weight
LY-03C	1.0-6mm2	20-10AWG	220mm	0.48kg

LY-03B Ratchet Crimping Tool for Non-insulated Tabs and Receptacles

Range of Application: For non-insulated tabs and receptacles

Type	Capacity	AWG	Length	Weight
LY-03B	1.5-6mm2	16-10AWG	220mm	0.48kg

LY-10 Ratchet Crimping Tool for Non-insulated Cable Links

Range of Application: For non-insulated cable links

Type	Capacity	AWG	Length	Weight
LY-10	1.0-10mm2	20-8AWG	220mm	0.48kg

LY-04WF Ratchet Crimping Tool for Insulated and Non-insulated Cable End-sleeves

Range of Application: For insulated and non-insulated cable end-sleeves

Type	Capacity	AWG	Length	Weight
LY-04WF	1.0-6mm2	20-10AWG	220mm	0.48kg

LY-101 Ratchet Crimping Tool for Non-insulated Terminals

Range of Application: For non-insulated terminals

Type	Capacity	AWG	Length	Weight
LY-101	1.5-10mm2	16-8AWG	220mm	0.48kg

LY-10GB Ratchet Crimping Tool for Non-insulated Terminals

Range of Application: For non-insulated terminals

Type	Capacity	AWG	Length	Weight
LY-10GB	0.5-10mm2	22-8AWG	220mm	0.48kg

LY-25WF Ratchet Crimping Tool for Insulated and Non-insulated Cable End-sleeves

Range of Application: For insulated and non-insulated cable end-sleeves

Type	Capacity	AWG	Length	Weight
LY-25WF	2*0.5-6.0mm2	2*22-10AWG	220mm	0.48kg

LY26TW Ratchet Crimping Tool for Insulated and Non-insulated cable End-sleeves

Range of Application: For insulated and non-insulated cable end-sleeves

Type	Capacity	AWG	Length	Weight
LY-26TW	0.5-6mm2	22-10AWG	220mm	0.48kg

LY-10WF Ratchet Crimping Tool for Insulaed and Non-insulated Cable End-sleeves

Range of Application: For insulated and non-insulated cable end-sleeves

Type	Capacity	AWG	Length	Weight
LY-10WF	1.0-10.0mm2	10-8AWG	220mm	0.48kg

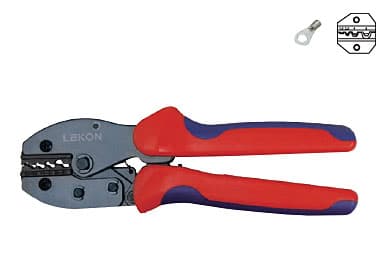

LY-6GB Ratchet Crimping Tool for Non-insulated Terminals

Range of Application: For non-insulated terminals

Type	Capacity	AWG	Length	Weight
LY-6GB	1.5-6mm2	16-10AWG	220mm	0.48kg

LY-07FL Ratchet Crimping Tool for Flag Type Receptacles Insulated Terminals

Range of Application: For flag type female receptacles insulated terminals

Type	Capacity	AWG	Length	Weight
LY-07FL	0.5-2.5mm2	22-14AWG	220mm	0.48kg

LY-05FL Ratchet Crimping Tool for Flag Type Receptacles

Range of Application: For flag type receptacles

Type	Capacity	AWG	Length	Weight
LY-05FL	4.8-6.3mm2	22-16AWG	220mm	0.48kg

LY-03A Ratchet Crimping Tool for Non-insulated Terminals

Range of Application: For non-insulated terminals

Type	Capacity	AWG	Length	Weight
LY-03A	0.5-2.0mm2	22-16AWG	220mm	0.48kg

LY-30D Ratchet Crimping Tool for Insulated Terminals

Range of Application: For insulated terminals

Type	Capacity	AWG	Length	Weight
LY-30D	0.5-6mm2	22-10AWG	220mm	0.48kg

LY-01 Ratchet Crimping Tool for Crimping Aluminum Casing

Range of Application: For crimping aluminum casing

Type	Capacity	AWG	Length	Weight
LY-01	6-8-10mm2	10-8AWG	220mm	0.48kg

LY-02H Ratchet Crimping Tool for Coaxial Cables
