Mini type wire crimping tool for various types of connectors
FSC mini wire crimper for crimping 35mm2 max
Share
Features
• Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality
crimping effect for consecutive crimping.
• Scientific leverage design and ergonomic handle design save energy when operating.
• Release locking in case of wrong operation.
Specifications
FSC series crimping tool
Length: 223mm
Weight: 0.73kg
| Model | Application | Crimping capacity | AWG |
| FSC-0510GF | Non insulated terminals | 0.5-10mm² | 22-8 |
| FSC-2056GF | Insulated and non-insulated twin cable end-sleeves | 2*0.5-6mm² | 2*22-10 |
| FSC-625GF | Insulated and non-insulated cable end-sleeves | 6, 10, 16, 25mm² | 10-4 |
| FSC-1035GF | Insulated and non-insulated cable end-sleeves | 10, 16, 25, 35mm² | 8-2 |
| FSC-2616GF | Insulated and non-insulated twin cable end-sleeves | 2*6, 10, 16mm² | 2*10-6 |
| FSC-2550GF | Insulated and non-insulated cable end-sleeves | 25, 35, 50mm² | 4-1 |
| FSC-1510TX | Non-insulated terminals; Hexagonal type | 1.5, 2.5, 4, 6, 10mm² | 16-8 |
| FSC-416TX | Non-insulated terminals; Hexagonal type | 4, 6, 10, 16mm² | 12-6 |
| FSC-0510TD | Non-insulated terminals; Point type | 0.5-1.5, 1.5-2.5, 2.5-4, 4-6, 6-10mm² | 22-8 |
| FSC-616TD | Non-insulated terminals; Point type | 4-6, 6-10, 10-16mm² | 12-6 |
| FSC-056YJ | Insulated terminals | 0.5-1.5, 15-2.5, 4-6mm² | 22-10 |
| FSC-156B | Non-insulated tabs and receptacles | 1.5, 2.5, 4-6mm² | 20-10 |
Images & Videos

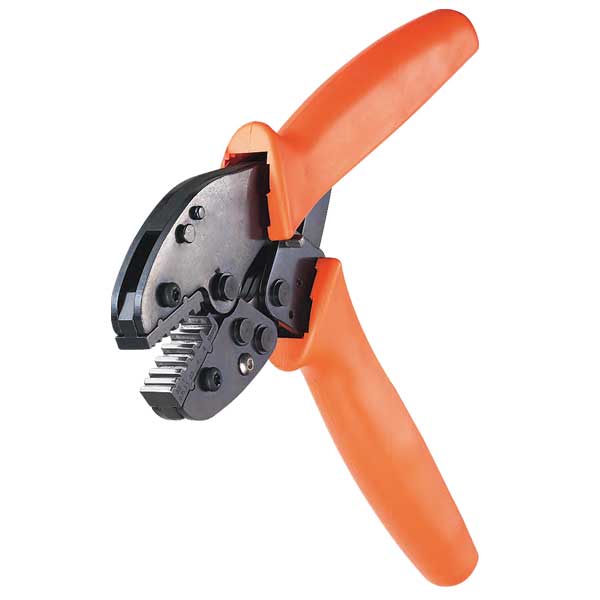

FSC-0510GF Crimping plier
Range of Application：For crimping noninsulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 0.5-10mm² | 22-8 AWG | 223mm | 0.73kg |
FSC-2056GF Crimping plier
Range of Application：For crimpinginsulated and non-insulated twin cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 2*0.5-6mm² | 2*22-10 AWG | 223mm | 0.73kg |

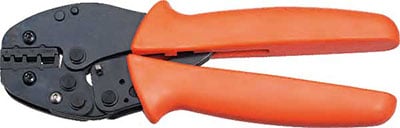

FSC-625GF Crimping plier
Range of Application：For crimping insulated and non-insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 6, 10, 16, 25mm² | 10-4 AWG | 223mm | 0.73kg |
FSC-1035GF Crimping plier
Range of Application：For crimping insulated and non-insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 10, 16, 25, 35mm² | 8-2 AWG | 223mm | 0.73kg |
FSC-2616GF Crimping plier
Range of Application：For crimping insulated and non-insulated twin cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 2*6, 10, 16mm² | 2*10-6 AWG | 223mm | 0.73kg |
FSC-2550GF Crimping plier
Range of Application：For crimping insulated and non-insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 25, 35, 50mm² | 4-1 AWG | 223mm | 0.73kg |
FSC-1510TX Crimping plier
Range of Application：For crimping non-insulated terminals; Hexagonal type
| Crimping Capacity | AWG | Length | Weight |
| 1.5, 2.5, 4, 6, 10mm² | 16-8 AWG | 223mm | 0.73kg |
FSC-416TX Crimping plier
Range of Application：For crimping non-insulated terminals; Hexagonal type
| Crimping Capacity | AWG | Length | Weight |
| 4, 6, 10, 16mm² | 12-6 AWG | 223mm | 0.73kg |
FSC-0510TD Crimping plier
Range of Application：For crimping non-insulated terminals; Point type
| Crimping Capacity | AWG | Length | Weight |
| 0.5-1.5, 1.5-2.5, 2.5-4, 4-6, 6-10mm² | 22-8 AWG | 223mm | 0.73kg |
FSC-616TD Crimping plier
Range of Application：For crimping non-insulated terminals; Point type
| Crimping Capacity | AWG | Length | Weight |
| 4-6, 6-10, 10-16mm² | 12-6 AWG | 223mm | 0.73kg |
FSC-056YJ Crimping plier
Range of Application：For crimping insulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 0.5-1.5, 15-2.5, 4-6mm² | 22-10 AWG | 223mm | 0.73kg |

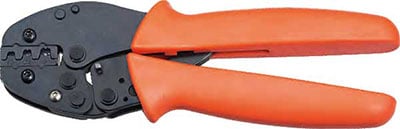

FSC-156B Crimping plier
Range of Application：For crimping non-insulated tabs and receptacles
| Crimping Capacity | AWG | Length | Weight |
| 1.5, 2.5, 4-6mm² | 20-10 AWG | 223mm | 0.73kg |
