For use of various types of connectors
FSA Series crimp tools for crimping 50mm2 max
Share
Features
• Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality
crimping effect for consecutive crimping.
• Scientific leverage design and ergonomic hand design save energy when operating.
• Release locking in case of wrong operation.
• There are two die sets at the side of the handle for using and storing.
Specifications
FSA series crimping tool
Length: 243mm
Weight: 0.75kg
| Model | Application | Crimping capacity | AWG |
| FSA-056YJ | Insulated terminals and butt-connectors | 0.5-1.5, 1.5-2.5, 4-6mm² | 22-10 |
| FSA-0510TD | Non insulated terminals | 0.5-1.5, 1.5-2.5, 2.5-4, 4-6, 6-10mm² | 22-8 |
| FSA-616TD | Non insulated terminals | 4-6, 6-10, 10-16mm² | 12-6 |
| FSA-1510TX | Non insulated terminals | 1.5, 2.5, 4, 6, 10mm² | 16-8 |
| FSA-416TX | Non insulated terminals | 4, 6, 10, 16mm² | 12-6 |
| FSA-156B | Non insulated tabs and receptacles | 1.5, 2.5, 4-6mm² | 20-10 |
| FSA-2056GF | Non insulated twin cable end-sleeves | 2*0.5, 0.75, 1.0, 1.5, 2.5, 4, 6mm² | 2*22-10 |
| FSA-0510GF | Non insulated cable end-sleeves | 0.5-10mm² | 22-8 |
| FSA-2616GF | Non insulated twin cable end-sleeves | 2*6, 10, 16mm² | 2*10-6 |
| FSA-625GF | Non insulated cable end-sleeves | 6, 10, 16, 25mm² | 10-4 |
| FSA-1035GF | Non insulated cable end-sleeves | 10, 16, 25, 35mm² | 8-2 |
| FSA-2550GF | Non insulated cable end-sleeves | 25, 35, 50mm² | 4-1 |
Images & Videos
FSA-056YJ Crimping Tool
Range of Application：For crimping non insulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 0.5-1.5, 1.5-2.5, 2.5-4, 4-6, 6-10mm² | 22-8 AWG | 243mm | 0.75kg |
FSA-0510TD Crimping Tool
Range of Application：For crimping non insulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 0.5-1.5, 1.5-2.5, 2.5-4, 4-6, 6-10mm² | 22-8 AWG | 243mm | 0.75kg |
FSA-616TD Crimping Tool
Range of Application：For crimping non insulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 4-6, 6-10, 10-16mm² | 12-6 AWG | 243mm | 0.75kg |
FSA-1510TX Crimping Tool
Range of Application：For crimping non insulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 1.5, 2.5, 4, 6, 10mm² | 16-8 AWG | 243mm | 0.75kg |
FSA-416TX Crimping Tool
Range of Application：For crimping non insulated terminals
| Crimping Capacity | AWG | Length | Weight |
| 4, 6, 10, 16mm² | 12-6 AWG | 243mm | 0.75kg |

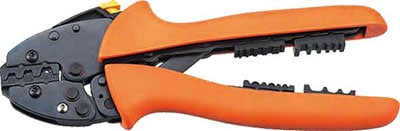

FSA-156B Crimping Tool
Range of Application：For crimping non insulated tabs and receptacles
| Crimping Capacity | AWG | Length | Weight |
| 1.5, 2.5, 4-6mm² | 20-10 AWG | 243mm | 0.75kg |

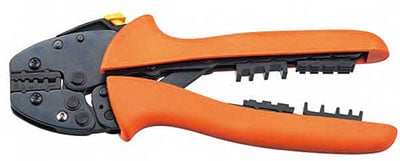

FSA-2056GF Crimping Tool
Range of Application：For crimping non insulated twin cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 2*0.5, 0.75, 1.0, 1.5, 2.5, 4, 6mm² | 2*22-10 AWG | 243mm | 0.75kg |
FSA-0510GF Crimping Tool
Range of Application：For crimping non insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 0.5-10mm² | 22-8 AWG | 243mm | 0.75kg |
FSA-2616GF Crimping Tool
Range of Application：For crimping non insulated twin cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 2*6, 10, 16mm² | 2*10-6 AWG | 243mm | 0.75kg |
FSA-625GF Crimping Tool
Range of Application：For crimping non insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 6, 10, 16, 25mm² | 10-4 AWG | 243mm | 0.75kg |
FSA-1035GF Crimping Tool
Range of Application：For crimping non insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 10, 16, 25, 35mm² | 8-2 AWG | 243mm | 0.75kg |
FSA-2550GF Crimping Tool
Range of Application：For crimping non insulated cable end-sleeves
| Crimping Capacity | AWG | Length | Weight |
| 25, 35, 50mm² | 4-1 AWG | 243mm | 0.75kg |
