AP energy saving ratchet crimping tool for non-welding connection

Energy Saving Ratchet Crimping Tool AP Series for non welding and standard electric connection 02

AP energy saving ratchet crimping tool for non-welding connection

For various types of connctors.

Inquire Now

Category: Crimping Tools

Features

• AP energy-saving ratchet crimping tool for non-welding and standard electric connection.

• New leverage design, saves at least 35% strength compared to common crimping tools.

• Precise crimping die sets and integral lock with self releasing mechanism ensure high

quality crimping effect after crimping continously.

• All key parts of the crimping tool have been specially hardened.

• The tool is with the features of high effectiveness and long lifetime.

• Quality 45″ tool steel, blackened finish.

Specifications

AP series crimping tool

Length: 250mm

Weight: 0.55kg

Type	Application	Crimping capacity	AWG	Connectors
AP-30J	Insulated terminals	0.5-1.5, 1.1-2.5, 2.6-6mm²	20-10
AP-40J	Insulated terminals	0.25-0.5, 0.5-1.5, 1.5-2.5, 4-6mm²	23-10
AP-03C	Insulated terminals	0.5-1.5, 1.5-2.5, 4-6mm²	20-10
AP-07FL	Flag female receptacles insulated terminals	1.5-2.5mm²	22-14
AP-056FL	Flag female receptacles	0.5-1.5, 1.5-2.5mm²	20-13
AP-06WF2C	Insulated, non-insulated ferrules, insulated terminals	0.5-2.5mm²	20-5
AP-10	Non-insulated terminals	1.5-6mm²	16-10
AP-101	Non-insulated terminals	0.5-1, 1.5-2.5, 4-6, 10mm²	20-7
AP-1016	Non-insulated terminals	1-16mm²	20-5
AP-03B	Non-insulated tabs and receptacles	1.5-6mm²	20-10
AP-05D	Turned contacts	0.14-1, 1.5, 2.5, 4mm²	25-11
AP-16GF	Insulated and non-insulated ferrules	4, 6, 10, 16mm²	12-6
AP-04WFL	Insulated and non-insulated ferrules	0.5, 0.75, 1, 1.5, 2.5, 4mm²	20-12
AP-26TW	Insulated and non-insulated ferrules	2*(0.5, 0.75, 1, 1.5, 2.5, 4, 6)mm²	2*(20-10)
AP-02H	RG55, 58, 59, 62, 140, 141, 142, 223, 303,400, FIBER OPTIC, BELDEN 8279	6.5, 5.4, 1.72mm²
AP-02H1	RG58, 59, 62 8X,140, 142, 14, 210, 223, 303, 400, FIBER OPTIC, BELDEN 8279	6.5, 5.4, 3.25, 2, 1.72, 1mm²
AP-05H	RG55, 58, 59, 62, 5, 6, 21, 140, 141, 142, 143, 210, 212, 222, 223, 303, 304, 400,BELDEN 8279, 8281, 9231, 9141	8.1, 6.5, 5.4, 2.6, 1.72mm²
AP-457	4C, 5C, 7C CABLE	11, 8.2, 5.4mm²

Images & Videos

AP-30J For insulated terminals and butt connectors

Range of application: For insulated terminals and butt connectors

Capacity	AWG	Length	Weight
0.5-1.5,1.1-2.5, 2.6-6.0mm2	20-10AWG	250mm	0.55kg

AP-05FL crimping tool for non-insulated flag type tabs and receptacles

Range of Application: For non-insulated flag type tabs and receptacles

Capacity	AWG	Length	Weight
4.8/6.3mm (0.5-1.5mm2)	22-16AWG	250mm	0.55kg

AP-07FL crimping tool for flag type insulated female terminals

Range of Application: For flag type insulated female terminals

Capacity	AWG	Length	Weight
1.5-2.5mm2	22-14AWG	250mm	0.55kg

AP-03C crimping tool for insulated terminals

Range of Application: For insulated terminals

Capacity	AWG	Length	Weight
0.5-6.0mm2	20-10AWG	250mm	0.55kg

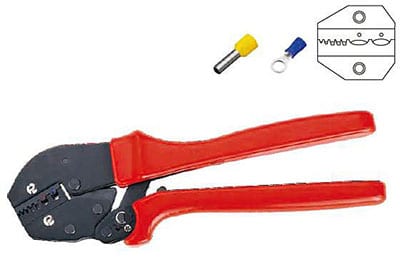

AP-06WF2C crimping tool for insulated terminals and cable end-sleeves

Range of Application: For insulated terminals and cable end-sleeves

Capacity	AWG	Length	Weight
0.5-2.5mm2	20-14AWG	250mm	0.55kg

AP-10 crimping tool for non-insulated terminals

Range of Application: For non-insulated terminals

Capacity	AWG	Length	Weight
1.5-6.0mm2	16-10AWG	250mm	0.55kg

AP-101 crimping tool for non-insulated terminals

Range of Application: For non-insulated terminals

Capacity	AWG	Length	Weight
1.5-10mm2	16-8AWG	250mm	0.55kg

AP-1016 crimping tool for non-insulated terminals

Range of Application: For non-insulated terminals

Capacity	AWG	Length	Weight
0.5-16mm2	20-8AWG	250mm	0.55kg

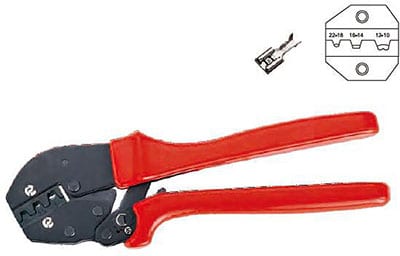

AP-03B crimping tool for non-insulated tabs and receptacles

Range of Application: For non-insulated tabs and receptacles

Capacity	AWG	Length	Weight
1.5-6.0mm2	16-10AWG	250mm	0.55kg

AP-04WFL crimping tool for insulated and non-insulated cable end-sleeves

Range of Application: For insulated and non-insulated cable end sleeves

Capacity	AWG	Length	Weight
0.5-4.0mm2	20-12AWG	250mm	0.55kg

AP-26TW crimping tool for insulated and non-insulated cable end-sleeves

Range of Application: For insulated and non-insulated cable end-sleeves

Capacity	AWG	Length	Weight
2*0.5-6.0mm2	2*20-10AWG	250mm	0.55kg

AP-457 crimping tool for coaxial cable

Range of Application: For coaxial cable

Connector Types	Cable Types	Crimping Capacity	Remarks
BNC/TNC	RG6, RG58	0.320"(8.13mm)/ 0.210"(5.33mm)/ 0.185"(4.7mm) HEX	2-piece BNC/TNC AIM. Cambridge, Kings, Amphenol

AP-02H crimping tool for coaxial cable

Range of Application: For coaxial cable

Connector Types	Cable types	Crimping Capacity	Remarks
BNC/TNC and Mini-UHF	RG59, RG62, BELDEN 8281, 50&75ohm	0.315"(8.0mm)/ 0.252"(6.4mm)/ 0.068"(1.7mm) HEX & 0.042"(1.0mm) SQ	75ohm 2-piece and 3-piece BNC/TNC(Kings, ADC, Amphenol, etc.)

AP-02H1 crimping tool for coaxial cable

Range of Application: For coaxial cable

Connector Types	Cable Types	Crimping Capacity	Remarks
CATV "F" Type	RG59, RG6 Video Cable	0.346"(8.8mm)/ 0.319"(8.mm)/ 0.256"(6.5mm) HEX	Crimps Ferrules or Sleeves Only

AP-05H crimping tool for coaxial cable

Range of Application: For coaxial cable

Connector Types	Cable Types	Crimping Capacity	Remarks
HDTV BNC/TNC Tue 75-ohm	Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, 179DT	0.178"(4.5mm)/ 0.255"(6.5mm)/ 0.278"(7.0mm)/ 0.068"(1.7mm)/ 0.041"(1.0mm) HEX	Kings, ADC, B&L, Trom peter, Amphenol, Switch craft
