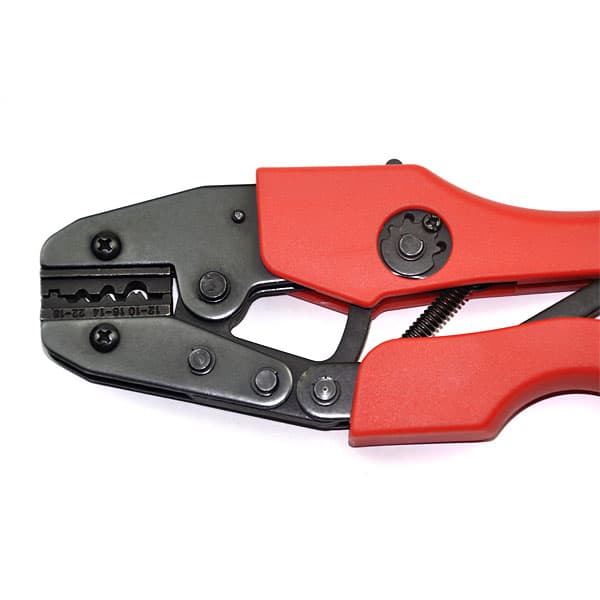

Wire Crimping Tools AN Series for Various Connectors and Terminals 01

AN series wire crimping tools for various connectors and terminals

Crimping range from 0.5-35mm2.

Category: Crimping Tools

Share

Features

• AN ratchet crimping tool for insulated and non-insulated terminals, coaixial cable connector,

solar connectors and many other connectors.

• It adopts the principle of using the best leverage to the effective handle design.

• The presice crimping die sets and integral lock with self releasing mechanism ensure

high crimping quality when crimping repeatedly.

• Ergonomic design, saves 50% energy when crimping.

• Accurate adjustments before delivery.

Specifications

AN series crimping tool

Length: 230mm

Weight: 0.6kg

Type	Application	Crimping capacity	AWG	Connectors
AN-30J	Insulated terminals and connectors	0.5-6.0mm2	22-10
AN-03C	Insulated terminals and connectors	0.5-6.0mm2	22-10
AN-03B	Non-insulated tabs and receptacles	0.5-6.0mm2	22-10
AN-10	Non-insulated terminals	1.0-10mm2	22-8
AN-25TW	Wire-end ferrules	2*0.5-6mm2	2*22-10
AN-04WF	Wire-end ferrules	1.0-6.0mm2	20-10
AN-04WFL	Wire-end ferrules	0.5-4.0mm2	22-10
AN-06WF	Wire-end ferrules	0.5-6.0mm2	22-10
AN-101	Non-insulated terminals	1.5-10mm2	16-8
AN-35WF	Insulated and non-insulated cable end-sleeves	10-35mm2	8-2
AN-02H	Coaxial cable	6.5mm 5.4mm 1.72mm	20-10
AN-05H	Coaxial cable	0.178″(4.5mm) 0.255″(6.5mm) 0.278″(7.0mm) 0.068″(1.7mm) 0.041″(1.0mm) HEX	25-11

Images & Videos

AN-30J Ratchet Crimping Tool for insulated terminals and connectors

Range of Application: For insulated terminals and connectors

Capacity	AWG	Length	Weight
0.5-6.0mm2	22-10AWG	230mm	0.6kg

AN-03C Ratchet Crimping Tool for Insulated Terminals and Connectors

Range of Application: For insulated terminals and connectors

Capacity	AWG	Length	Weight
0.5-6.0mm2	22-10AWG	230mm	0.6kg

AN-03B Ratchet Crimping Tool for Non-insulated Tabs and Receptacles

Range of Application: For non-insulated tabs and receptacles

Capacity	AWG	Length	Weight
0.5-6.0mm2	22-10AWG	230mm	0.6kg

AN-10 Ratchet Crimping Tool for Non-insulated Terminals

Range of Application: For non-insulated terminals

Capacity	AWG	Length	Weight
1.0-10mm2	22-8AWG	230mm	0.6kg

AN-25TW Ratchet Crimping Tool for Wire-end Ferrules

Range of Application: For wire-end ferrules

Capacity	AWG	Length	Weight
2*0.5-6mm2	2*22-10 AWG	235mm	0.6kg

AN-04WF Ratchet Terminal Crimping Tool

Range of Application: For wire-end ferrules

Capacity	AWG	Length	Weight
1.0-6.0mm2	20-10AWG	230mm	0.6kg

AN-04WFL AN-06WF Ratchet Terminal Crimping Tool

Range of Applicationsl: For wire-end ferrules

Capacity	AWG	Length	Weight
0.5-4.0mm2	22-10AWG	230mm	0.6kg
0.5-6.0mm2	22-10AWG	230mm	0.6kg

AN-101 Ratchet Crimping Tool for Non-insulated Terminals

Range of Application: For non-insulated terminals

Capacity	AWG	Length	Weight
1.5-10mm2	16-8AWG	230mm	0.6kg

AN-35WF Ratchet Crimping Tool for Insulated and Non-insulated Cable End-sleeves

Range of Application: For insulated and non-insulated cable end-sleeves

Capacity	AWG	Length	Weight
10-35mm2	8-2AWG	240mm	0.6kg

AN-02H Ratchet Crimping Tool for Coaxial Cable

Range of Application: For coaxial cable

Capacity	AWG	Length	Weight
6.5mm 5.4mm 1.72mm		230mm	0.6kg

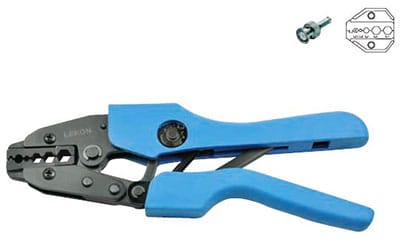

AN-05H Ratchet Crimping Tool for Coaxial Cable

Range of Application: For coaxial cable

Capacity	AWG	Length	Weight
0.178"(4.5mm) 0.255"(6.5mm) 0.278"(7.0mm) 0.068"(1.7mm) 0.041"(1.0mm) HEX		240mm	0.6kg
